A hydraulic cylinder, also known as a linear hydraulic motor, is a mechanical actuator used to derive a unidirectional force from a unidirectional stroke. Hydraulic cylinders are used in many applications, especially in engineering vehicles, such as excavators, which use hydraulic cylinders to control the action of shovels and robotic arms. There are three main structures of hydraulic cylinder: cylinder barrel, piston and piston rod.

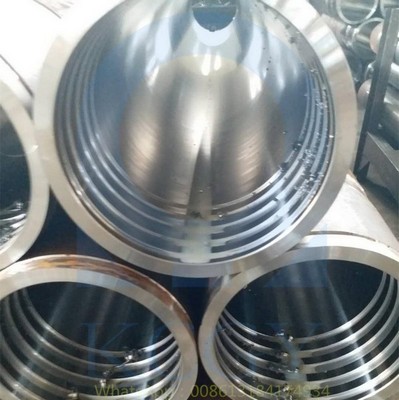

Honed Tube

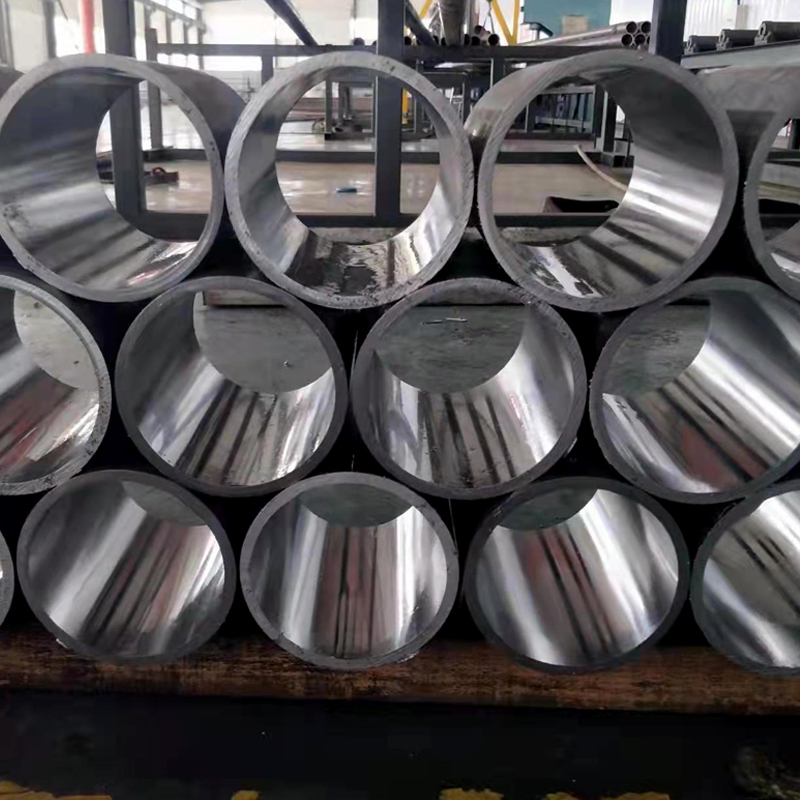

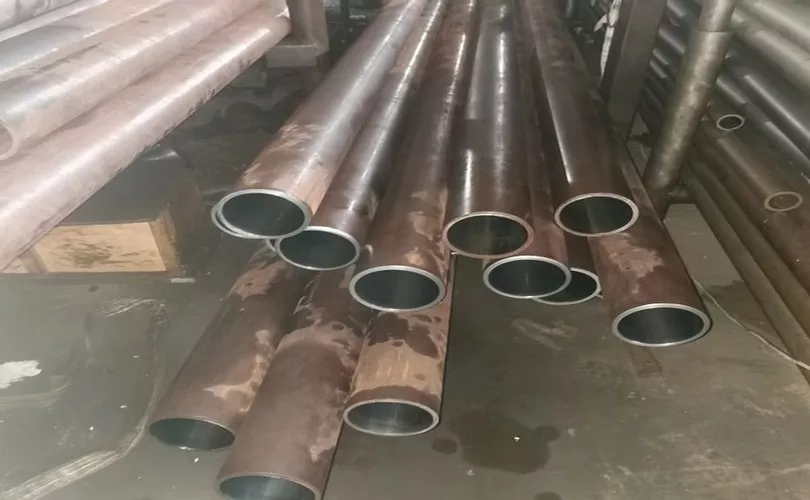

Hydraulic Cylinder Honed Tubing
Customized High Pressure Hydraulic Cylinders
Hydraulic Cylinder | |
Custom Hydraulic Cylinder / Pneumatic Cylinder ( we produce as per client’s drawing or design with technical requirements.) | |
Application | Engineering machinery, mine, shipping, metallurgy, water conservancy, offshore, agriculture, etc. |
Stroke | 20mm to 16000mm |
Bore | 40mm to 1500mm |
Shaft | 12mm to 1000mm |
Work pressure | 16Mpa to 70Mpa (2250 PSI – 10150 PSI) |
Seal | Parker, Merkel, NOK, Hallite,etc. |
Paint | Red, Grey, Yellow, Black, etc. |
Material | St52, CK45, 4140, Duplex2205, Stainless Steel 304/316, etc. |
Certificate | ISO, etc. |
Package | Bubble-wrap packing, then in wooden case. |
Color | choose the color according to customer requirement |
Model | Double Acting or Single Acting |
Cylinder body material | ST52, CK45, 4140, Duplex 2205, Stainless Steel 304/316, etc. |
Structure | Piston Type, Plunger Type, Telescopic Type |
Tips: OEM service provided. We also can design by ourselves. We also produce hydraulic system, hydraulic power units. | |
