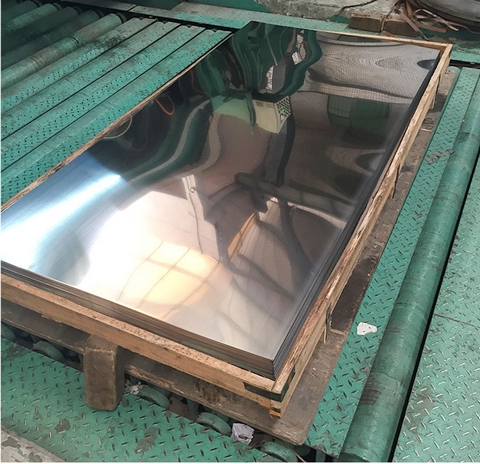

316 mirror stainless steel plate

We supply the highest quality steel

[email protected]

13370586666

Stainless steel plate

Home > product > Stainless steel > Stainless steel plate

Page Navigation

Product Usage Product Specification Chemical Composition Mechanical Behavior Factory Other types Customer Factory Inspection

Quote Online

Product Usage

316 stainless sheet and plate is used in numerous types of industrial applications, including:Food processing equipment,Pulp & paper processing,Oil & petroleum refining equipment,Textile industry equipment,Pharmaceutical equipment,Architectural structures,etc

Product Specification

Place of Origin	China
The Material	201/304/316L/321/310S/904L/2205/2507/C276/309S/304L/316Ti/317L
Standard	ASTM
Quality Grade	The Real Thing
Type of Goods Sold	The spot
Thickness	0.3, 0.4, 0.5, 0.6, 0.7, 0.8, 0.9, 1.0, 1.2, 1.5, 2.0, 2.5, 3.0mm
Length	3000mm
Width	1500mm
Species	Plate

Chemical Composition

ASME SA 240	C	Si	P	N	Mn	S	Mo	Cr	Ni
SA 240 316	0.08 max	1.0 max	0.045 max	67.845 min	2 max	0.030 max	2.00 – 3.00	16.00 – 18.00	11.00 – 14.00

Mechanical Behavior

ASTM A240	Melting Range	Psi / Mpa - Tensile Strength	Psi / Mpa - Yield Strength (0.2%Offset)	Density	% Elongation
ASTM A240 Gr 316	1400 °C (2550 °F)	MPa – 515 Psi – 75000	MPa – 205 Psi – 30000	8.0 g/cm3	35 %
