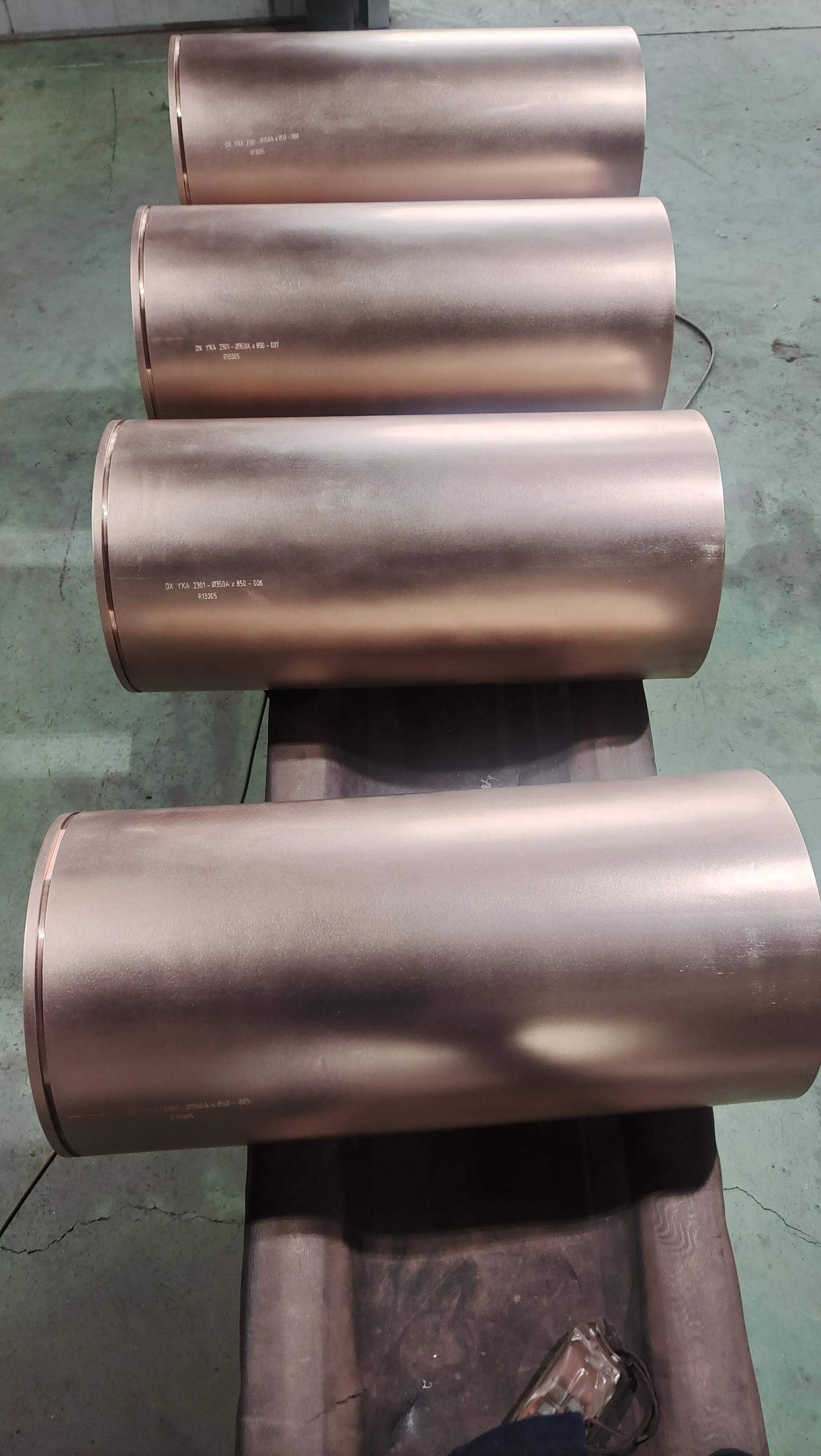

Round Billet Crystallizer

Applications of round billet crystallizer copper tubes

Round billet crystallizer copper tubes are widely used in multi-strand casters producing rebar, wire rods, and forging stock billets. Their efficient heat transfer and electromagnetic stirring ensure stable shell growth, minimize center segregation, and extend casting campaigns. Industries like construction, automotive, and energy depend on these crystallizers for high-quality billet supply.

Specifications of round billet crystallizers

Typical specifications include tube lengths of 800-1200 mm, wall thicknesses of 10-20 mm, and use of high-conductivity copper alloys such as Cu-DHP or Cu-Cr-Zr. Cooling water flow rates exceed 10 m/s at pressures around 0.8 MPa for effective heat removal. Designs incorporate vibration, electromagnetic stirring, and tapering to optimize casting speed and billet surface quality.

Performance benefits in round billet casting

Round billet crystallizers deliver superior thermal performance, allowing casting speeds of up to 4 meters per minute with reduced defects and enhanced shell integrity. Their robust alloy construction extends service life, reduces maintenance frequency, and improves energy efficiency. This leads to higher throughput and consistent billet quality essential for downstream processing.

Round Billet Crystallizer Attributes

Attribute	Parameter	Description
Product Name	Round Billet Crystallizer Copper Tube	Copper mould tube designed for continuous casting of round steel billets in CCM.
Application	CCM round billet casting	Solidifies molten steel into round billets used for seamless pipes and bars.
Copper Grade	TP2 / Cu-DHP / Cu-Ag / Cu-Cr-Zr	Deoxidized high-phosphorus or alloyed copper for superior thermal conductivity.
Cross-section Shape	Round	Circular profile optimized for round billet production.
Size Range (Diameter)	Φ60–Φ1500 mm	Covers small to large round billets from Φ60 mm up to Φ1500 mm.
Length	602–1100 mm (up to 2000 mm)	Precision lengths matching various CCM arc radii like 5000–17000 mm.
Wall Thickness	10–50 mm	Thick walls ensure mechanical strength and efficient heat transfer.
Taper Design	Single/double/triple/quadruple/parabolic taper	Advanced tapers promote uniform shell formation in round billets.
Coating	Ni-Co-Cr / Hard chrome	Multilayer wear-resistant coating for extended service under thermal stress.
Thermal Conductivity	≥390 W/m·K	Enables high-speed casting with rapid heat extraction.

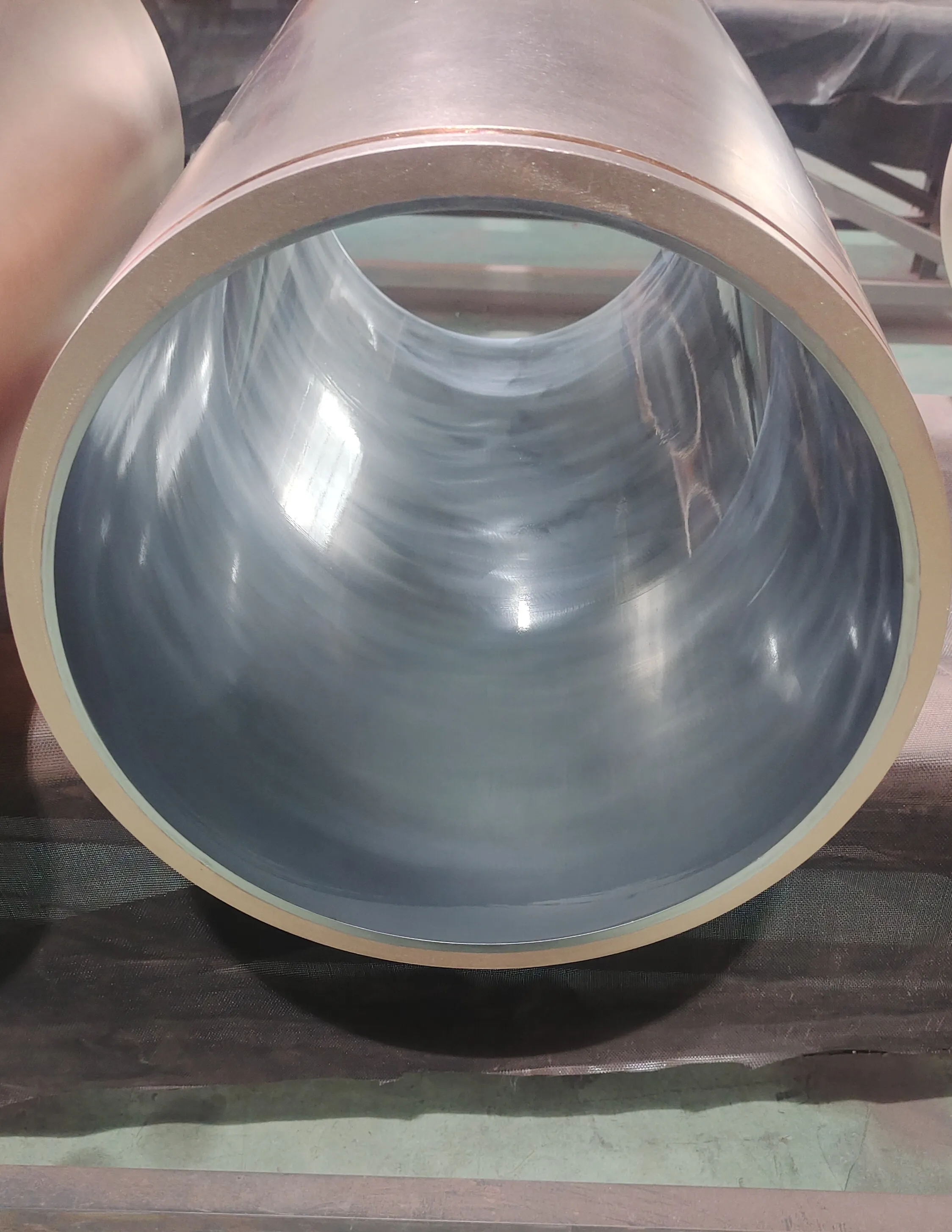

Surface Finish	Mirror polish, Ra ≤0.1 μm	Ultra-smooth inner surface improves billet quality and reduces friction.
Hardness (Coated)	HRC 40–50+ / 80–95 H	High hardness withstands abrasion during continuous operation.
Dimensional Tolerance	Wall ±0.1 mm; ovality ≤0.2%	Tight tolerances ensure consistent roundness and performance.
Cooling Method	Water-cooled tube walls	High-efficiency primary cooling supports stable solidification.
Service Life	500–1000 heats	Premium materials and coatings maximize operational cycles.
Quality Standards	OEM specifications	Customizable per customer drawings and CCM machine requirements.
Typical Industries	Steel mills producing round billets	Used for pipe, bar, and wire rod feedstock in rolling mills.
