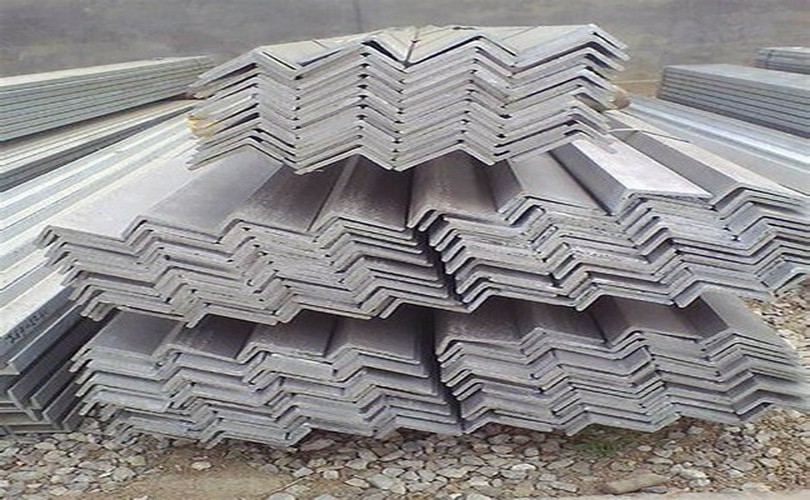

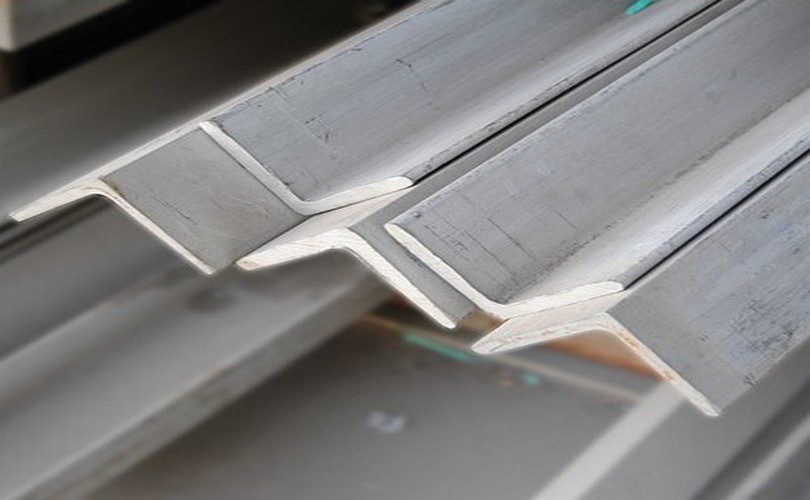

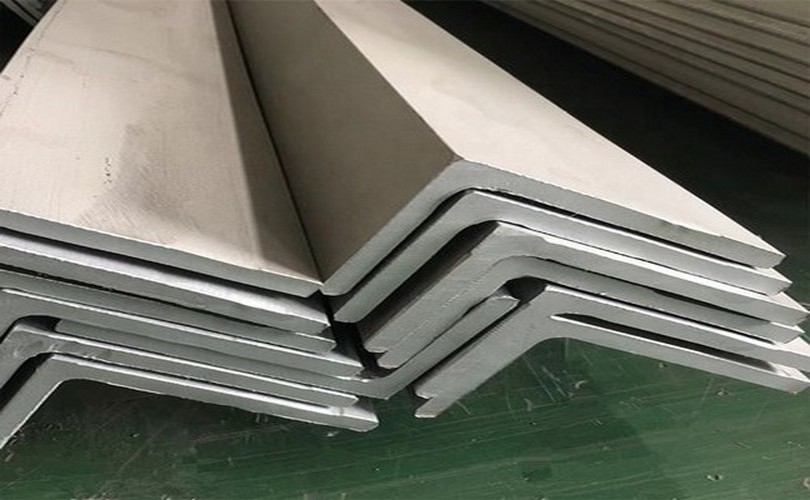

410 hot Rolled Stainless Steel Angle bar

Product Usage

  1. Architectural/Civil Engineering: Cladding, handrails, door and window fittings, street furniture, structural sections, enforcement bar, lighting columns, lintels, masonry supports.
  2. Transport: Exhaust systems, car trim/grilles, road tankers, ship containers, ships chemical tankers, refuse vehicles.
  3. Chemical/Pharmaceutical: Pressure vessels, process piping.
  4. Oil and gas: Platform accommodation, cable trays, sub-sea pipelines.
  5. Medical: Surgical instruments, surgical implants, food processing.
  6. Food and Drink: Catering equipment, brewing, distilling, food processing.
  7. Water: Water and sewage treatment, water tubing, hot water tanks.

Product Specifications

Name

Stainless Steel Angle Bar

Standard

ASTM, GB, JIS, AISI,DIN, EN, etc

Grade

300 series  400 series  500 series  600 series

Material

304,304L,316L,316Ti,309S,310S,321,321H,314,2205,2507,600,631,800H,825,901,903,904L,1.4529,317,317LN,347H,348H,253MA,254SMO,25-6MOS,32760,440A,440B,440C,GH3030,GH3039,C276,HC-276 Hastelloy, 724L,725LN and so on

Technical

Cold rolled , hot rolled

Surface

Black, peeled, polishing, bright, sand blast, hair line, etc.

Dimension

3mm*25mm*25mm~18mm*180mm*180mm

Length

6m,9m ,12m or as request

Shape

Equal, unequal

Processing

Bending, Welding, Decoiling, Punching, Cutting

Lead time

7 to 10 working days after the receipt of deposit. Standard size is in stock,prompt delivery or as order's quantity.

MOQ

1 MT

Sample

Free provided, trial order can be acceptable

Payment terms

30%TT for deposit, 70% balance before shipment or LC at sight

Price Term

EXW,FOB,CNF,CIF

Port of Loading

Shanghai Port

Packing

export worthy packingIn bundles with waterproof material, in wooden cases or as customers' requirements

Chemical Composition

GRADECNISISMNPCRTI
SS 4100.15 max0.50 max51.0 max0.030 max1.0 max0.040 max11.5 – 13.5


Mechanical Behavior

GRADETENSILE STRENGTH(MPA) MINYIELD STRENGTH 0.2% PROOF (MPA) MINELONGATION (% IN 50MM) MINROCKWELL B (HRB) MAXBRINELL (HB) MAX
SS 41065 (450)30 (205)2096217
