Model

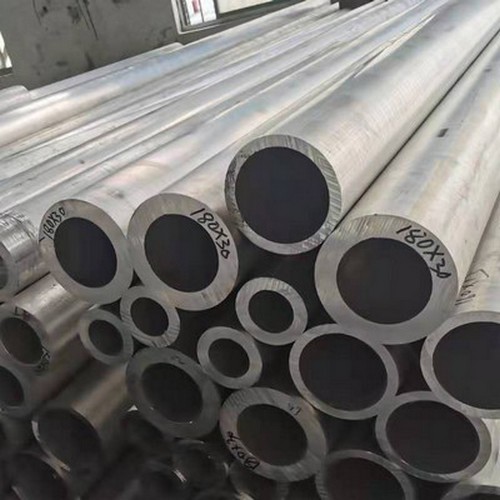

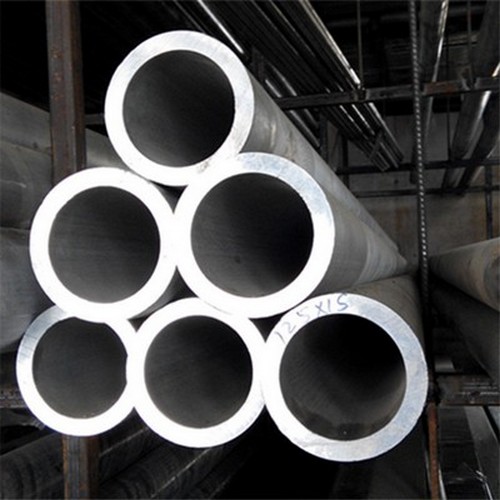

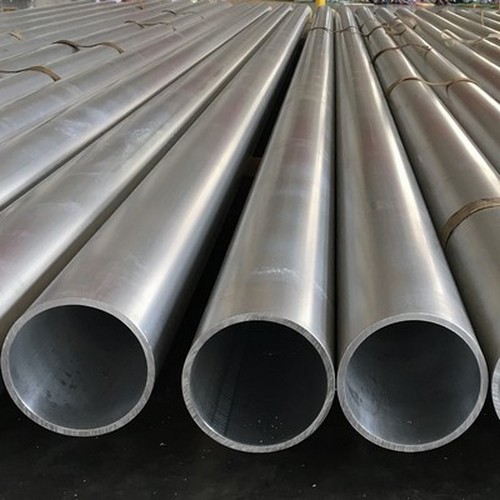

Aluminum/Aluminium lube/Pipe

Material Grade

1000 series: 1050,1060,1070,1080,1100,1435, etc.

2000 series: 2011, 2014,2017,2024, etc.

3000 series: 3002,3003,3104,3204,3030 , etc.

5000 series: 5005,5025,5040,5056,5083, etc.

6000 series:6101,6003,6061,6063,6020,6201,6262,6082, etc.

7000 series: 7003,7005,7050,7075, etc.

Size

Outer Diameter:3-250mm

Wall Thickness: 0.3-50mm

Length: 10mm-6000mm

Standards

ASTM,ASME,EN ,JIS, DIN,GB/T , etc.

Surface treatment

Mill finished , anodized , powder coating, Sand blast, etc.

Surface colors

Nature, silver, bronze, champagne, black, golden, etc.

As customized

Status

Nature, silver, bronze, champagne, black, golden, etc.

As customized

Usage

Aluminum profile for windows/doors/decoration/construction/curtain wall

Quality

China Nation Standard GBT

Packing

Protective film+plastic film or EPE+kraft paper

Certificate

ISO 9001 2008

MOQ

1 tons.Usually 12 tons for a 20 feet container; 24 tons for a 40 feet container

Press Machine

500-4000 tons all together 64 press lines

Moulding

1.Using our moulds, no fee;

2.Using customer drawing , opening mould , usually about 5 tons the moulding fee is free;

3.Can be discussed.

Aluminum Alloy

Si

Fe

Cu

Mn

Mg

Cr

Zn

Ti

Zr

Other
(unit)

Other
(total)

Al

2024

0.5

0.5

3.8-4.9

0.3-0.9

1.2-1.8

0.1

0.25

0.15

-

0.05

0.15

the rest

Aluminum alloy and temper

Tensile strength
(Rm/Mpa)

Yield Strength
(Rp0.2/Mpa)

elongation rate
(%)

Hardness
(HBWα)

2024

420

290

6

120
